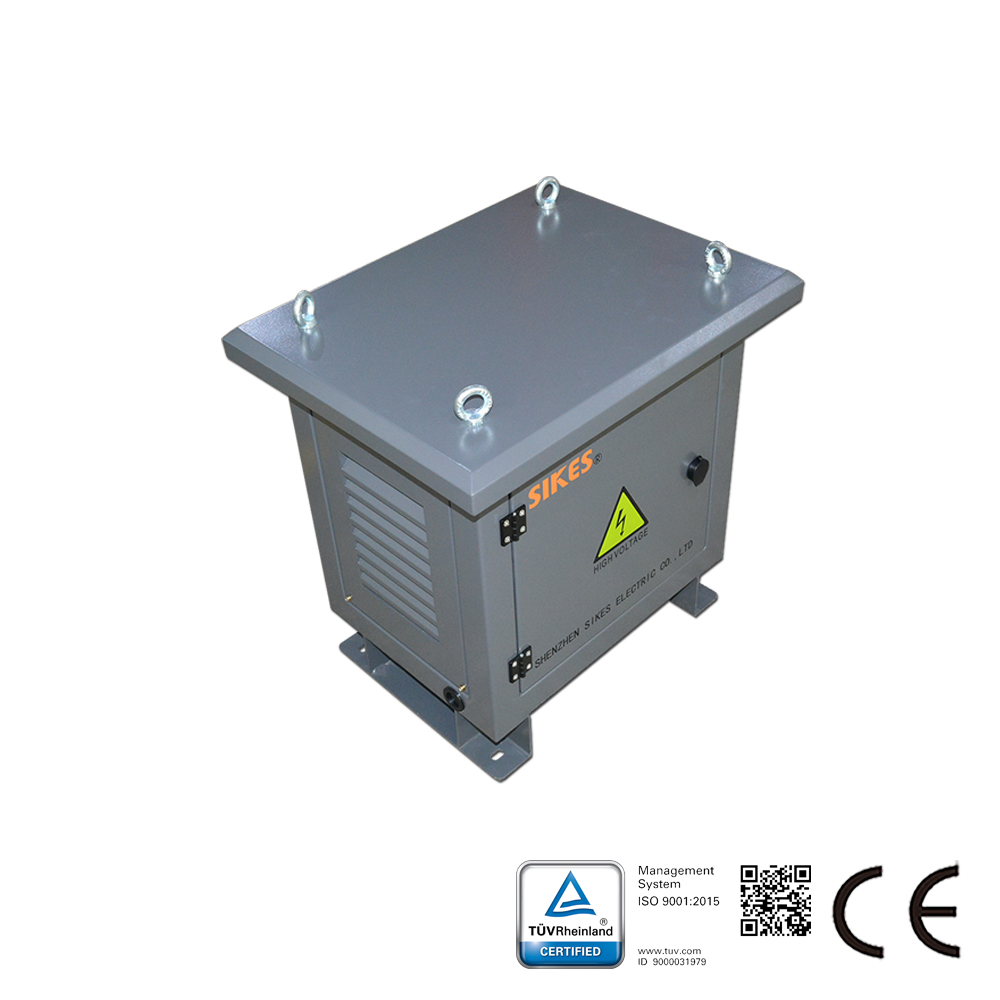

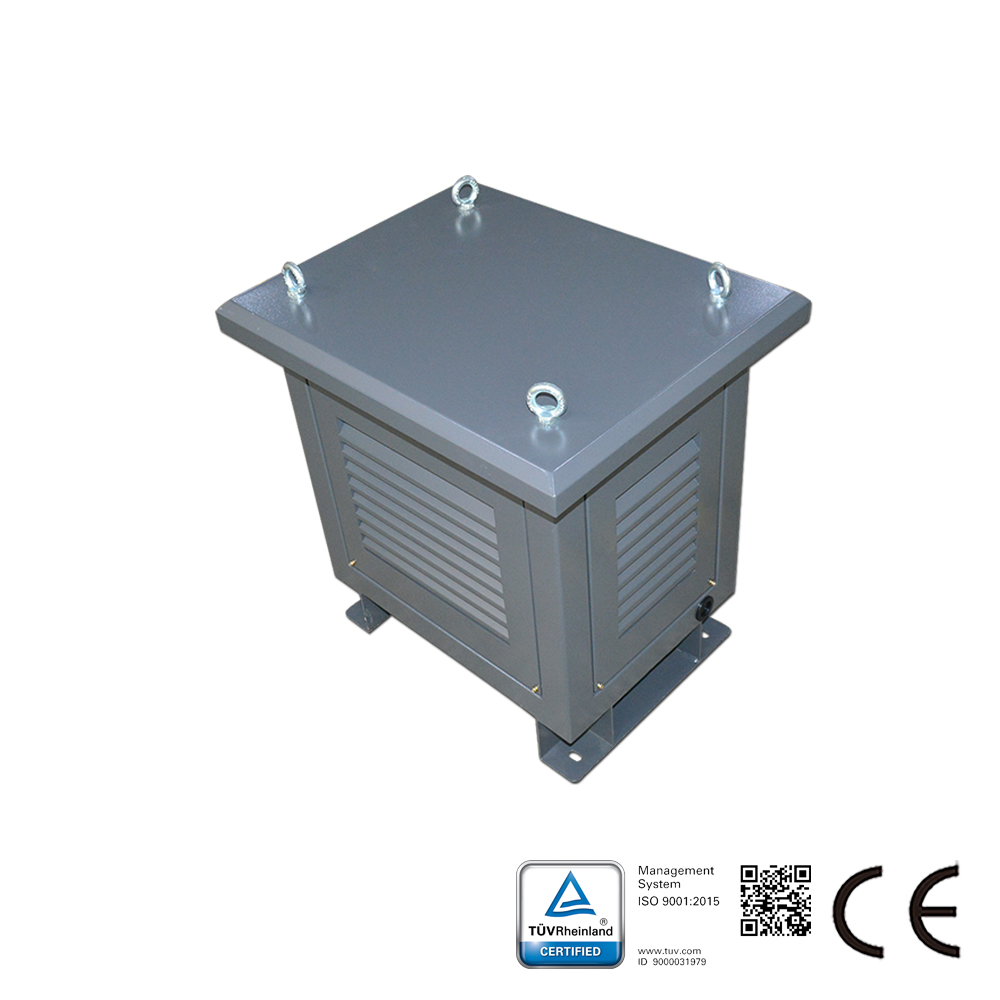

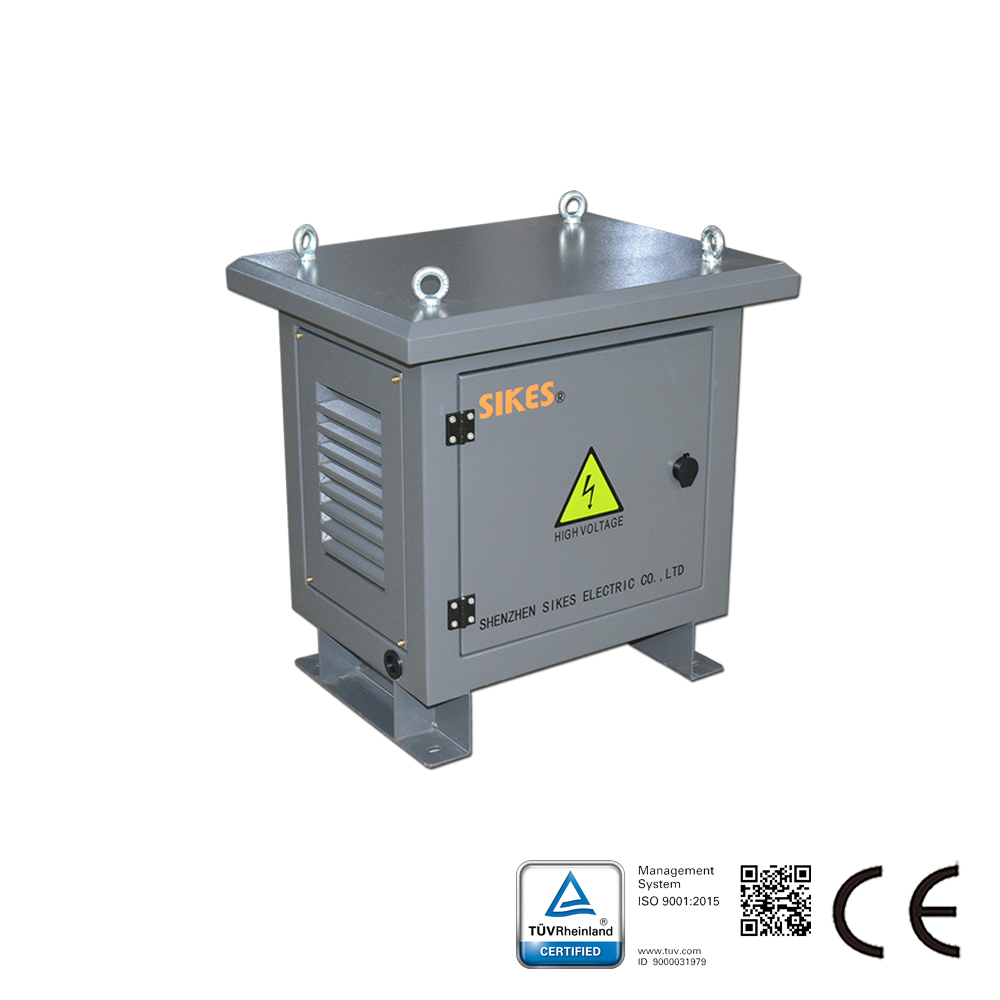

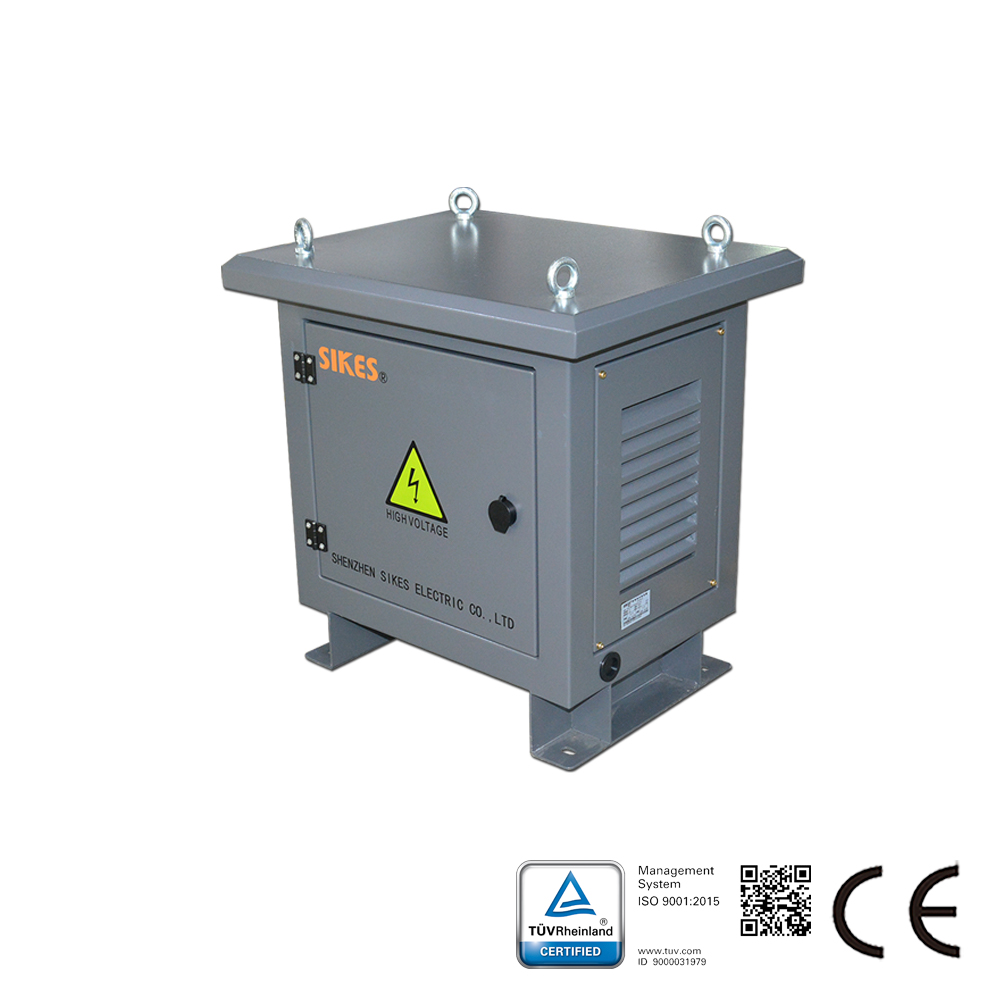

Description of Photovoltaic Isolation transformer single phase：

DK series photovoltaic isolation transformer is used to solve the power grid problems which are caused by the photovoltaic power generation,such as harmonic, flickering, DC magnetic bias, and over voltage. Transformers are usually used between power grid and grid-connected inverter which can isolated inverter and sent the power back to grid.

Characteristic of this series:
Standard capacity: 1.0KVA/1.5KVA/2.0KVA/2.5KVA/3.0KVA
Rated voltage:315V/400V-220V/150V
Insulation Class: B/F/H
Phase type: single-phase
Impedance: 3-5%
Efficiency:＞98%
Overload capacity： 15%
Electric intensity: AC3000V/min, leakage current＜5mA
Under rated power, winding temperature-rise F, less than 100K.
Meterial： High quality silicon steel sheet iron core, which achieves low no-load loss and noise. Enamelled rectangular wire for small capacity, aluminum foil for large capacity, producing with vacuum pressure impregnation which makes transformer high mechanical strength and moistureproof ability.

Application of Photovoltaic Isolation transformer single phase：
Photovoltaic power generation
Wind power transmission
High Power UPS, Inverters
Lighting
Machine Tool Electrical Apparatuses
Electrical Machinery And Equipment
Medical Equipment
Rectifying Device
