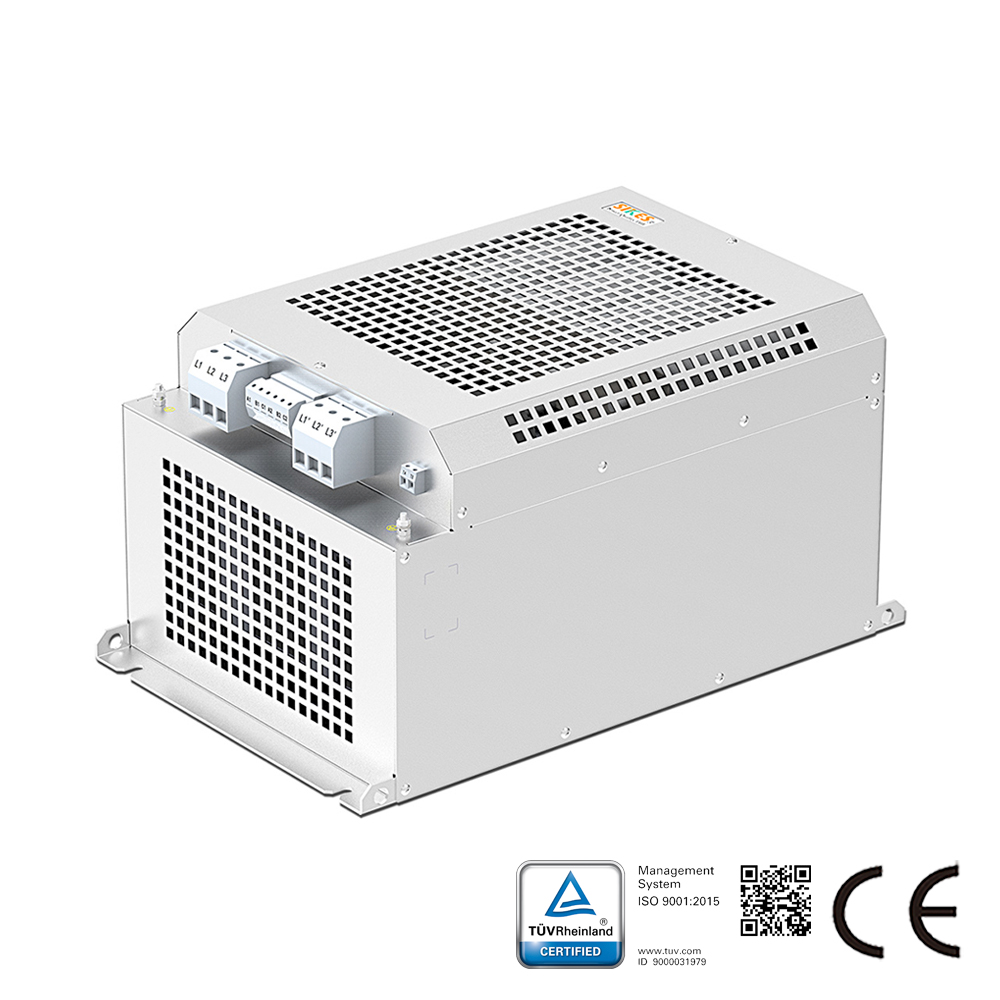

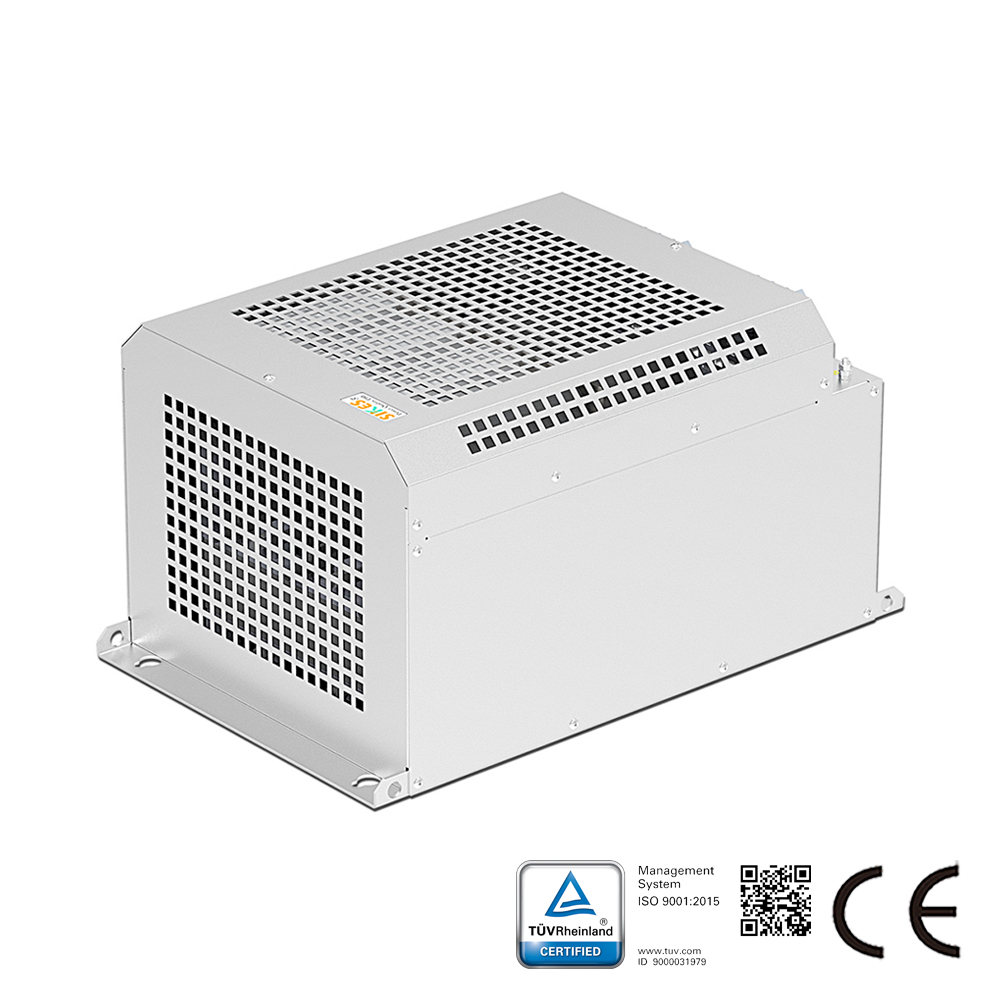

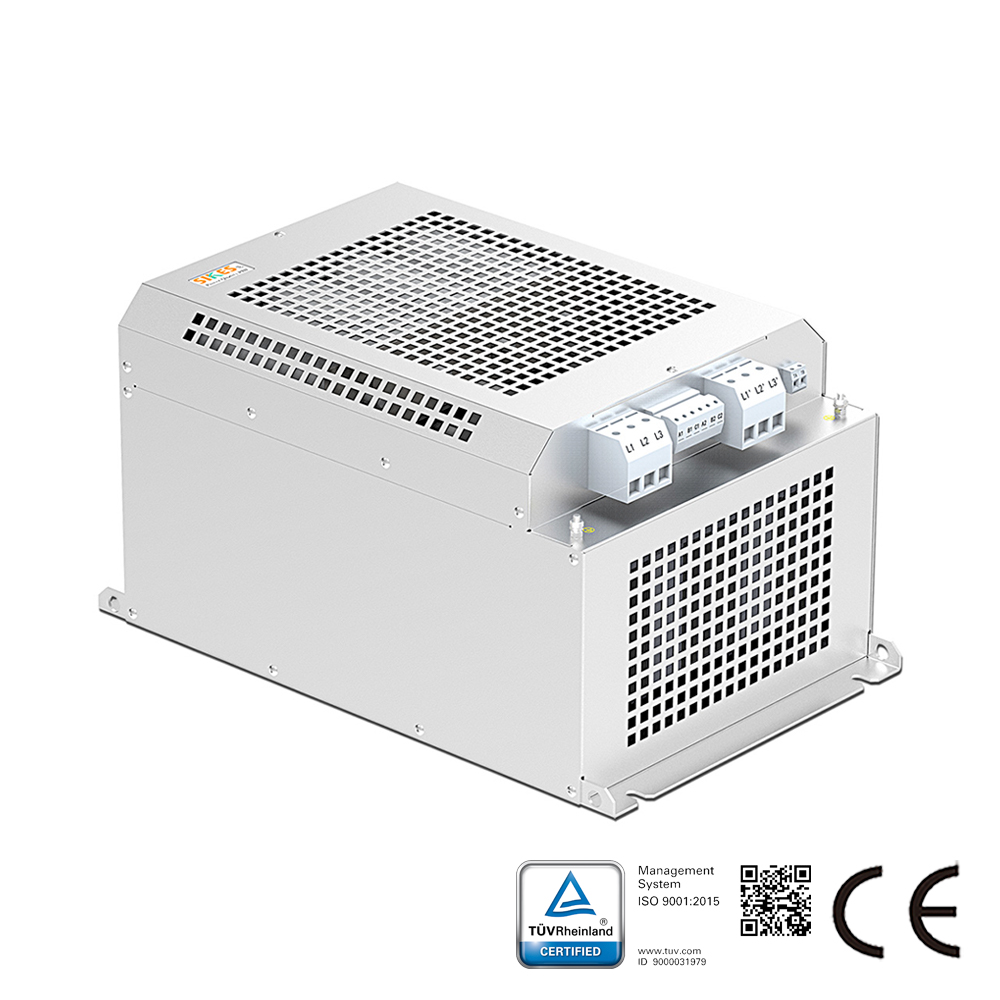

SIKES Passive Harmonic Filter PIHF Series are Designed for matched with ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 full power range.

Optimize harmonic performance

Harmonic Filter PIHF is a cost-effective Harmonic solution. Compared to traditional harmonic trap filters PIHF offers a smaller foot print and higher harmonic reduction.

When connected in front of a  ABB Low Voltage Drive, the harmonic current distortion generated back to the mains is reduced to 10% Total Harmonic Current Distortion at full load. (System requirements: THVD < 2%, line voltage unbalance < 1%)

With a >98% efficiency the Passive Harmonic Filters PIHF offer cost effective and very robust harmonic solutions specifically for ABB Low Voltage Drive (ACS510, ACx550, ACx580, ACS880 full power range.

As stand-alone options the Advanced Harmonic Filters feature a compact housing that is easily integrated into existing panel space. This makes them well-suited for retrofit applications with limited adjustments of the frequency converter.

Specifications
Line Voltage：380-415 VAC (50 Hz) ;
Enclosure Rating：IP00 ;
Overload Current：160% for 60 seconds;
Efficiency>0.98

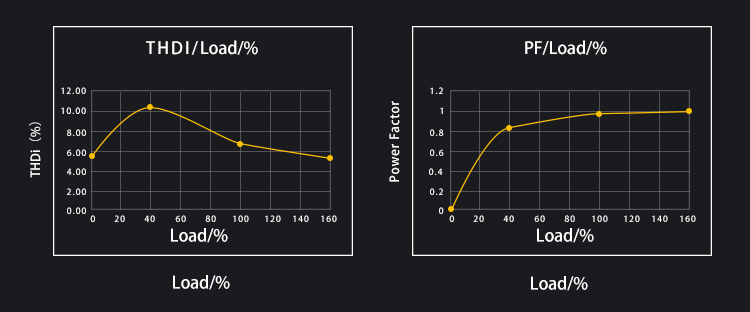

True Power Factor
0.85 @ 50% load;
0.99 @ 100% load.
Ambient Temperature：-13º~113º F (-25º~45ºC) without derating.
Features and benefits:
Designed for matched performance with ABB Low Voltage Drive;
User-friendly startup; no adjustment necessary;
Requires no routine maintenance;
Designed to address the current distortion limit guidelines of:
IEEE 519
EN 61000-2-4
EN 61000-2-2
IEC/EN 61000-3-2
IEC/EN 61000-3-12
IEC/EN 61000-3-4
