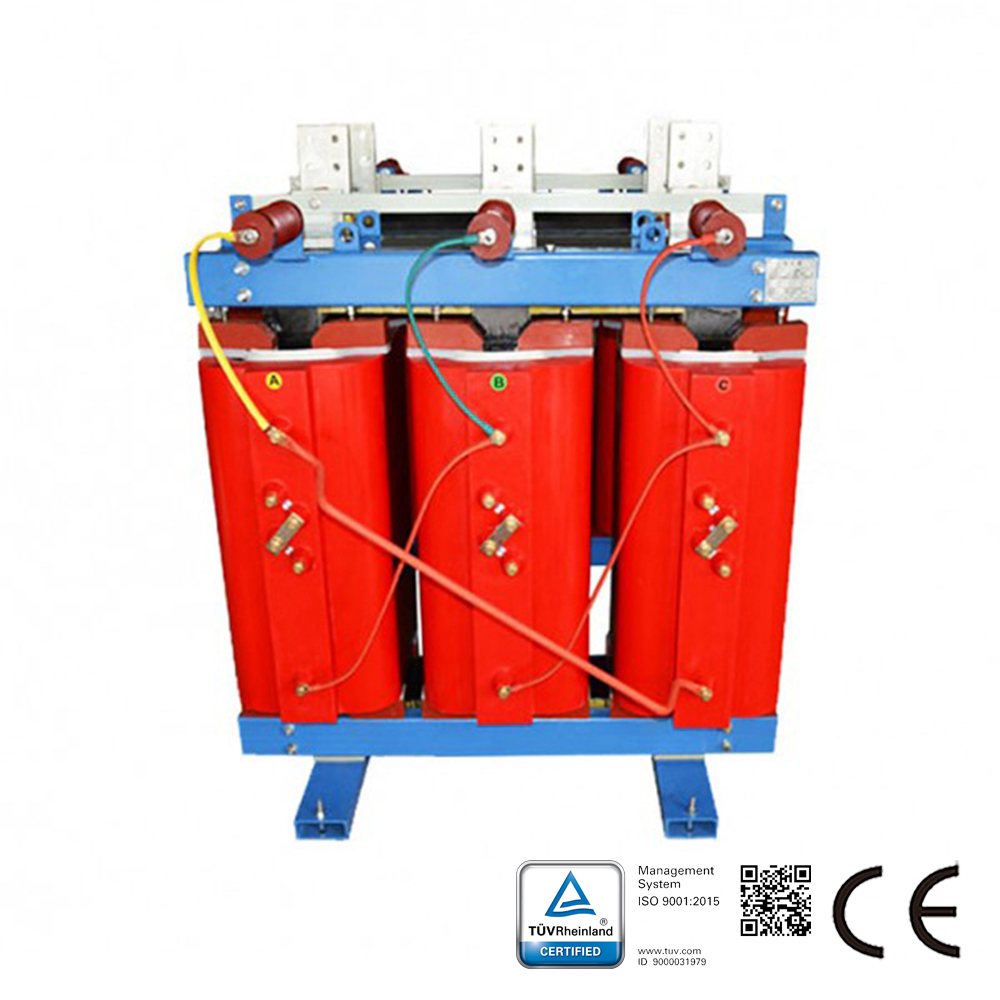

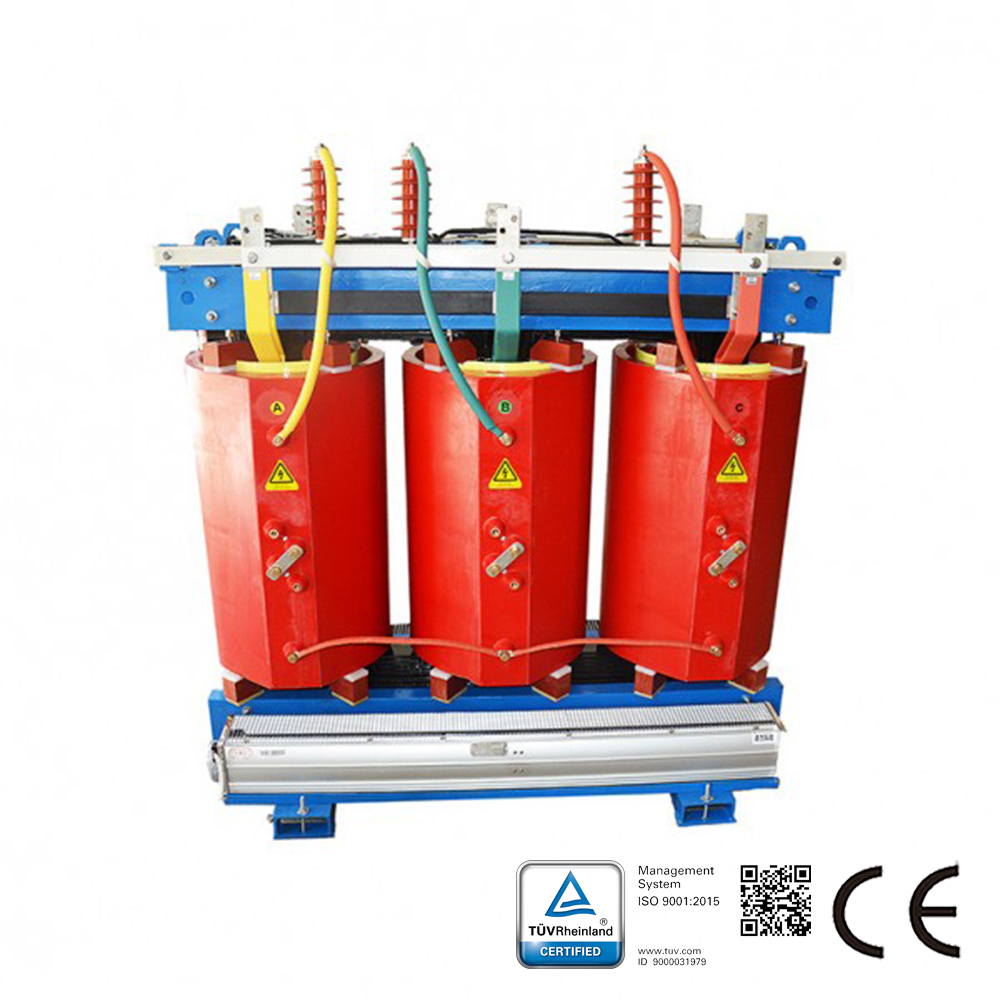

Safe, non-pollute and flame proof, the epoxy-resin filled electric transformer can replace the oil-immersed transformrer. According to IEC60076-11 Standard, iron core is made of high quality cold silicon steel sheet with 45° sloping seam, its barrel is strapped with insulated tape and it is sealed with resin to be safeguarded against corruption and moisture, to lower the no load loss, no load current and iron noise.
Characteristics of Epoxy resin transformer:
Designed for: strict fire protection requirements.
Type of phase:three-phase
Industrial standard: IEC60076-11,GB/T10228-1997, GB6450-1986, GB/T17211-111998
Rated power:50-3000KVA
Operating frequency:50-60Hz
Application of Epoxy resin transformer:
This series is widely used in the places which requires strict fire protection for flammability, explosion,such as high-rise building, commercial center, subway, airport, rail station, industrial and mining establishment and power plant.
| Capacity (KVA) | 50-3000 |
| Impedance VOL. | 4% |
| Insulation Class | F/H |
| Operating Frequency | 50-60Hz |
| Phase | 3 Phase |
| Standard | IEC60076-11,GB/T10228-1997, GB6450-1986, GB/T17211-111998 |
