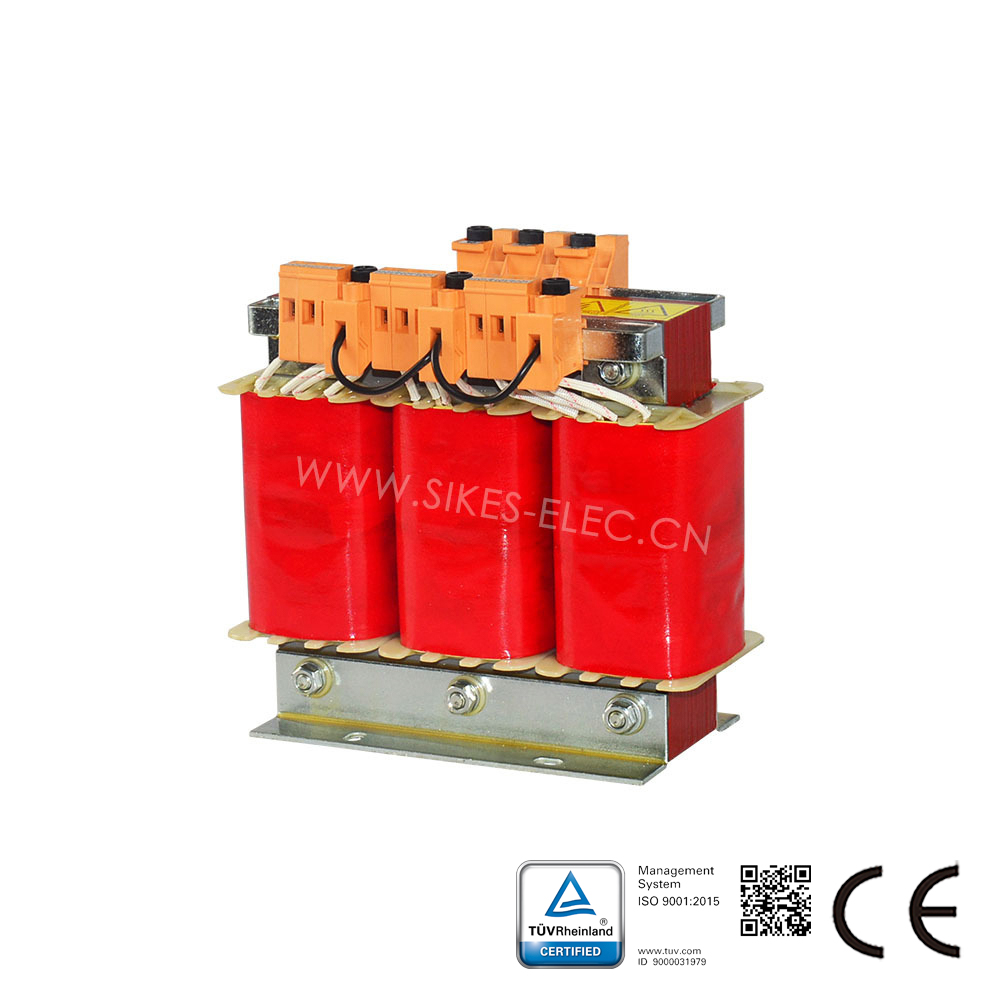

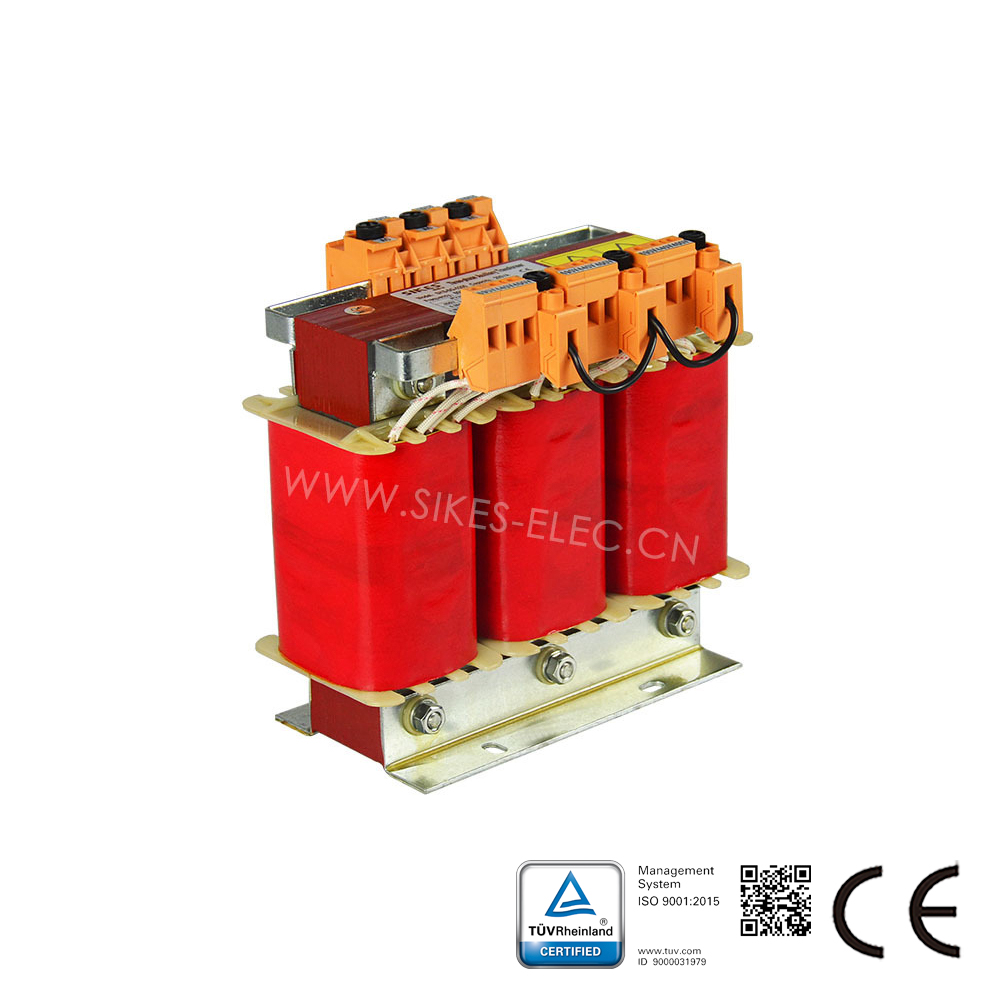

Description of Power Isolation transformer:

Industrial Control Transformers provide stepped-down voltages to machine tool control devices and meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used.

Warning of Power Isolation transformer:

Environment exists without gas, steam, chemical deposition, dust or dirt. Explosive or corrosive medium is not allowed. Outer casing could be desiged as required.

Characteristic of this series：
1.Power range: ≤15KVA.
2.Phase: Three phase
3.Primary voltage: 400V/440V/690V
4.Secondary voltage: 230V
5.Frequency: 50/60Hz
6.Connection: Screw faston terminals
7.Fixing system: Angles DIN 41307
8.Winding: Enamelled copper wire class F/H, separated primary and secondary(galvanic separation)
9.Protection class: IP00 or as customer required.
10.Insulation class: F/H
11.Standard: According to EN61558-2-6
